Concealed Overhead Wooden Door Closer W120 (EN3 / 120kg)

  • Concealed Overhead Wooden Door Closer W120
Inquiry Prev Next
Product Description

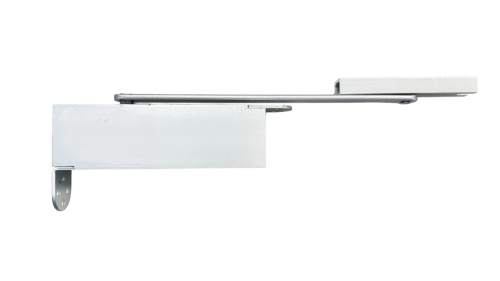

Concealed Overhead Wooden Door Closer W120

Concealed Overhead Wooden Door Closer W120 is designed for projects that require a clean appearance, reliable door control, and practical installation efficiency. As a concealed door closer for wooden doors, it is suitable for both single action inward and outward opening doors, with handing easily changed by flipping the rocker arm. For buyers looking for a hidden door closer, concealed overhead door closer, or door closer for wooden door systems, W120 offers a balanced solution for appearance, performance, and installation flexibility.

Compared with floor spring systems that require floor recess work, W120 uses a concealed overhead mounting design, helping reduce floor construction time and simplify project planning. This makes it a practical choice for office doors, hotel doors, interior wooden doors, residential projects, and commercial wooden door applications where buyers want a neat door appearance together with controlled closing performance.

W120 supports both 90° hold open and no hold open options. Its closing speed and latching speed are fully independent, allowing installers and project teams to fine-tune the door movement based on door size, traffic frequency, and user safety requirements. With low opening resistance and efficient closing performance, W120 is also a practical option for buyers comparing adjustable concealed door closers for medium to heavy wooden doors.

Key Advantages of Concealed Overhead Wooden Door Closer W120

  • Suitable for single action wooden doors
  • Handing can be changed by flipping the rocker arm
  • Supports door widths from 750 mm to 1100 mm
  • Suitable for door weights up to 120 kg
  • 90° hold open and no hold open options available
  • Independent adjustment of closing speed and latching speed
  • Low opening resistance with high closing efficiency
  • Suitable for ambient temperatures from -20℃ to 40℃

If you are comparing different door control solutions, you may also view our Wooden Door Closer Series, Floor Spring Series, Transom Closer Series, and Floor Spring Accessories to find the right hardware solution based on door type, installation method, and project requirements.

Why Choose CHIEN CHIN for Concealed Door Closer Supply?

  • ✔ More than 30 years of door control hardware manufacturing experience
  • ✔ Specialized in transom closers, floor springs, wooden door closers, and accessories
  • ✔ OEM / ODM support for project-based and bulk order requirements
  • ✔ Experience serving commercial door hardware and export markets
  • ✔ Stable production and long-term supply support for overseas buyers

If you are searching for a concealed door closer manufacturer, concealed overhead door closer supplier, or wooden door closer OEM / ODM factory, CHIEN CHIN can provide product recommendations based on door size, installation conditions, and project needs. You are also welcome to learn more on our About Us page.

Product Feature

Concealed Overhead Wooden Door Closer W120 Features

Concealed Overhead Wooden Door Closer W120 is developed for buyers who need a concealed door closer for wooden door applications with dependable closing performance, flexible handing, and a cleaner appearance than exposed door control hardware. It is a practical choice for interior doors, office doors, hotel doors, and commercial wooden door systems where both function and appearance matter.

Concealed Overhead Design

The concealed mounting design helps maintain a clean door appearance and is suitable for projects that prefer hidden door hardware.

For Single Action Doors

Suitable for single action doors, making it a practical concealed overhead door closer for wooden door systems in residential and commercial spaces.

Reversible Handing

The opening direction can be changed by flipping the rocker arm, giving installers better flexibility for different site conditions.

Suitable for Doors up to 120 kg

Designed for wooden doors up to 120 kg, making it suitable for medium to heavy duty interior and commercial wooden door applications.

Independent Speed Adjustment

Closing speed and latching speed can be adjusted independently for better door control and smoother closing performance.

Hold Open or No Hold Open

Available in both 90° hold open and no hold open versions to match different space planning and traffic flow requirements.

Recommended Applications

W120 is suitable for office wooden doors, hotel room doors, interior project doors, apartment doors, and other wooden door systems that require a concealed overhead door closer with adjustable performance. To compare with other door control types, you may also view our Floor Spring Series and Transom Closer Series.

For importers, distributors, project contractors, and door hardware buyers looking for a concealed door closer supplier, hidden door closer manufacturer, or wooden door closer factory, W120 is a practical model that combines clean appearance, adjustable control, and dependable application flexibility.

Product Specification

Concealed Overhead Wooden Door Closer W120 Specifications

Below are the main specifications of Concealed Overhead Wooden Door Closer W120 for buyers, architects, contractors, and project teams to evaluate door size, door weight, hold open function, and installation suitability. If you would like to compare other door control products, you may also visit our Wooden Door Closer Series, Floor Spring Series, Transom Closer Series, and Product Overview.

Item Specification
Model W120
Product Type Concealed Overhead Wooden Door Closer / Concealed Door Closer / Hidden Door Closer
Closing Force EN3
Max. Door Width 750 ~ 1100 mm
Max. Door Weight 120 kg
Min. Door Thickness 40 mm
Max. Door Opening Angle 105°
Hold Open Option 90° Hold Open / No Hold Open
Door Handing Reversible by flipping rocker arm
Speed Adjustment Closing speed and latching speed fully independent
Ambient Temperature -20℃ ~ 40℃
Performance Features Low opening resistance and high closing efficiency

Application and Selection Notes

Item Description
Common Buyer Searches concealed door closer, concealed overhead door closer, hidden door closer, concealed door closer for wooden door, adjustable concealed door closer
Suitable Applications office wooden doors, hotel doors, apartment doors, interior wooden doors, residential projects, commercial wooden door systems
Installation Advantage A practical alternative for projects that prefer concealed overhead installation rather than floor spring construction
Selection Advice In addition to door weight, buyers should also check door width, door thickness, opening direction, traffic frequency, and hold open requirements

If your project requires comparison across different door control solutions or related accessories, you may also review our Wooden Door Closer Series, Floor Spring Series, Floor Spring S280, Transom Closer T500E, and Floor Spring Accessories for complete project planning.

Concealed Overhead Wooden Door Closer W120 FAQ

Q1: What types of doors is Concealed Overhead Wooden Door Closer W120 suitable for?
Concealed Overhead Wooden Door Closer W120 is suitable for single action wooden doors such as office doors, hotel doors, apartment doors, interior project doors, and other wooden door systems that require a concealed overhead door closer with a cleaner architectural appearance.
Q2: What is the maximum door weight supported by Wooden Door Closer W120?
Wooden Door Closer W120 is suitable for doors up to 120 kg. For correct model selection, buyers should also confirm door width, door thickness, installation conditions, and traffic frequency to ensure the concealed door closer performs properly in actual use.
Q3: Can Concealed Overhead Wooden Door Closer W120 be used for both left-hand and right-hand doors?
Yes. Concealed Overhead Wooden Door Closer W120 can be adapted for different door handing by flipping the rocker arm. This gives installers and contractors more flexibility when specifying a concealed door closer for wooden door projects.
Q4: Does Adjustable Concealed Wooden Door Closer W120 allow closing speed adjustment?
Yes. Adjustable Concealed Wooden Door Closer W120 features fully independent adjustment valves for closing speed and latching speed. This allows more precise control for different door sizes, project conditions, and safety requirements.
Q5: Is Concealed Door Closer for Wooden Door W120 available with hold open and no hold open options?
Yes. Concealed Door Closer for Wooden Door W120 is available in both 90° hold open and no hold open versions, allowing buyers to choose the right configuration based on traffic flow, interior layout, and project requirements.
Q6: Can CHIEN CHIN support OEM / ODM or bulk orders for Wooden Door Closer W120 and concealed door closer products?
Yes. CHIEN CHIN supports OEM / ODM cooperation and bulk order inquiries for Wooden Door Closer W120, concealed overhead door closers, and related door hardware. We can recommend suitable models based on door type, dimensions, installation conditions, and project demand for importers, distributors, and contractors.

Looking for a Concealed Overhead Wooden Door Closer Supplier?

If you are looking for a concealed door closer manufacturer, concealed overhead door closer supplier, or wooden door closer OEM / ODM partner, welcome to contact us. CHIEN CHIN can recommend suitable models based on door type, door weight, installation conditions, and project requirements.
